Atlas Platinum PVL10 10,000 lb Overhead Lift

Name: Atlas Platinum PVL10 10,000 lb Overhead Lift
Brand: BS
SKU: lifter14
Price: 1629.00 EUR
Availability: InStock

Original price was: 3.200,00 €.Current price is: 1.629,00 €.

Kostenloser Premiumversand

sorgenfreie Rückgabe

Persönlicher 24h Live-Support

100 % sichere und verschlüsselte Zahlung

This product also features an ALLY Hydraulic AL2850 Power Unit.This power unit also carries an industry leading two-year limited warranty.

ALI Certified Lift
10,000 lb. Capacity
Column design with special Double “S” bends increasing column strength
Can be installed Symmetrically OR Asymmetrically

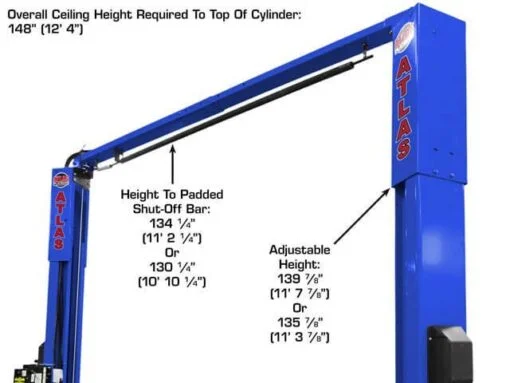

Overall Height: 135 7/8″ (11′ 3 7/8″) or 139 7/8″ (11′ 7 7/8″) (Cylinder Height 12′ 4″)
Padded Carriages

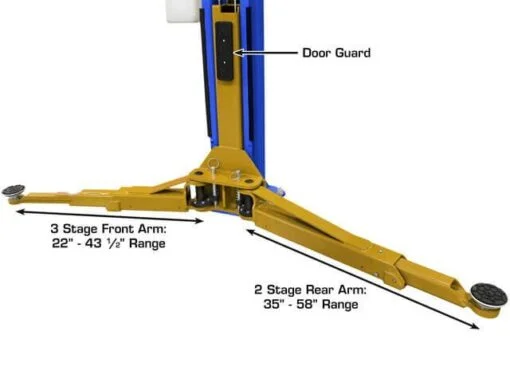

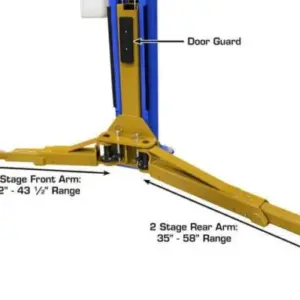

3-Stage Front Arms & 2-Stage Rear Arms
Single-Point Lock Release
Powder Coat Finish
Includes Double Screw-up Adapters
Free 8 Piece Truck Adapter Set
Mounting Hardware Included
Standard with Premium ALLY Powerunit
Shipping Weight: 1,850 lbs.
5 yr Structural – 2 yr Hydraulic – 2 yr Powerunit Warranty

Atlas® Platinum PVL10 Specifications
Capacity	10,000 LB.
Overall Height	135 7/8″ (11’ 3 7/8”) or 139 7/8” (11’ 7 7/8”) – (CYLINDER EXTENDS TO 12’ 4”)
Overall Floor Width	139″ (11’ 7”) Asymmetric/137 1/2” (11’ 5 1/2”) Symmetric
Outside Column to Outside Column	130″ (10’ 10″) Asymmetric/129 1/4” (10’ 9 1/4″) Symmetric
Maximum Lift Height (Without Adapters)	72 1/2″
Maximum Lift Height (With Adapters)	81 1/2″
Minimum Arm Height	4″
Inside Column	107 3/4” (8’ 11 3/4”) Asymmetric/ 112 1/2″ (9’ 4 1/2″) Symmetric
Drive Thru	91” Asymmetric/99 1/2” Symmetric
Column Size	7″ x 10 1/4″
Column Thickness of Steel	6mm
Base Of Lift	15″ x 18″
Motor/Electrical Requirement	220 volt single (1) phase. A 30 amp breaker is recommended
Oil Requirement	3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight	1,850 LBS.
Adapter Heights	4 Each 3”, 6”
Arm Hole/Adapter Peg Size	2”

Requires a minimum of 4″ of concrete with a 3000 psi. rating
